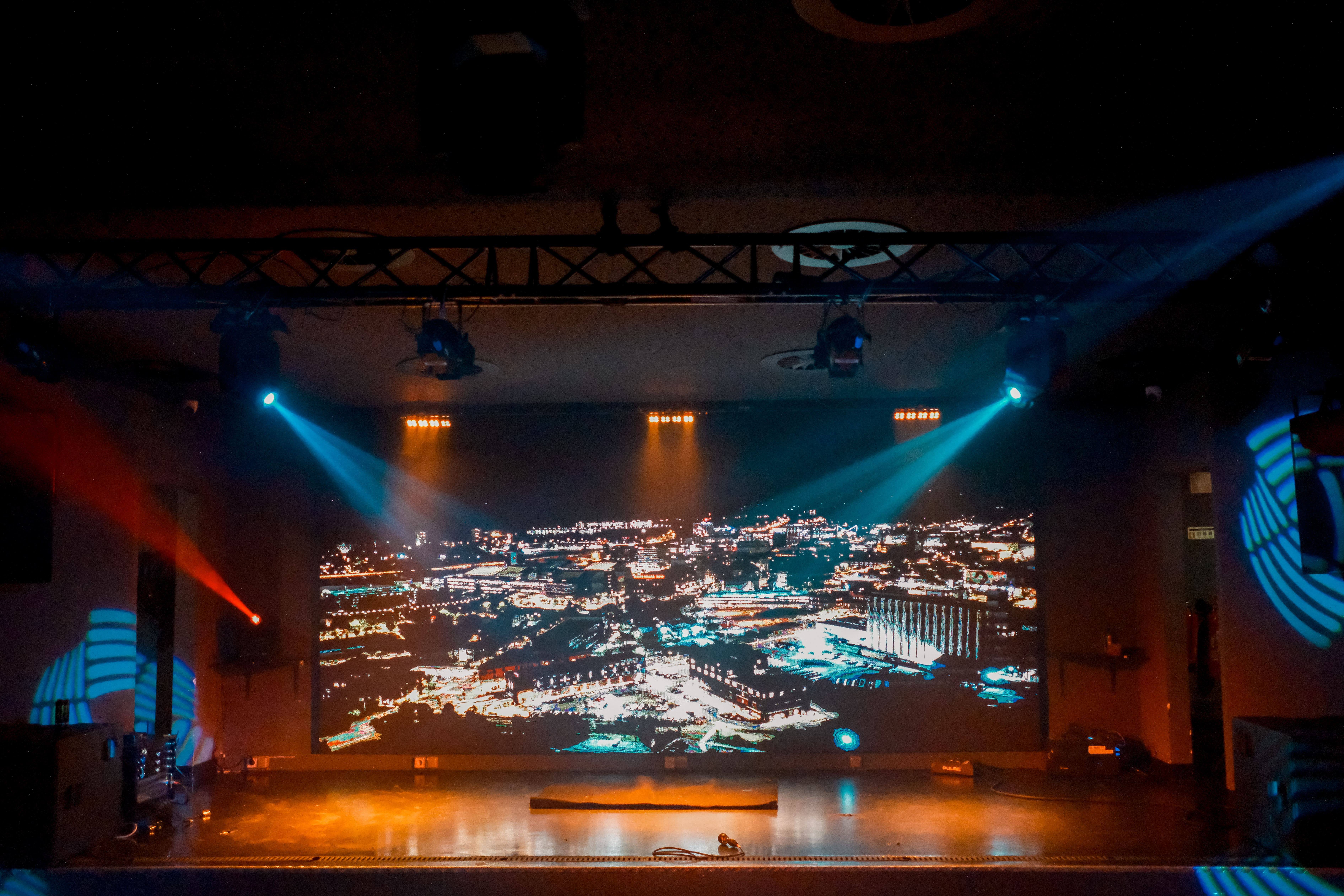

Stage

Measurements

Curtains

Open house without curtains, legs, or borders.

Floor

Concrete pavement covered with black epoxy resin.

Control Booth

The booth is located at the back wall of the dance floor in front of the stage, in the middle, with good visibility. At control booth we have all the controls for light, video and sound.

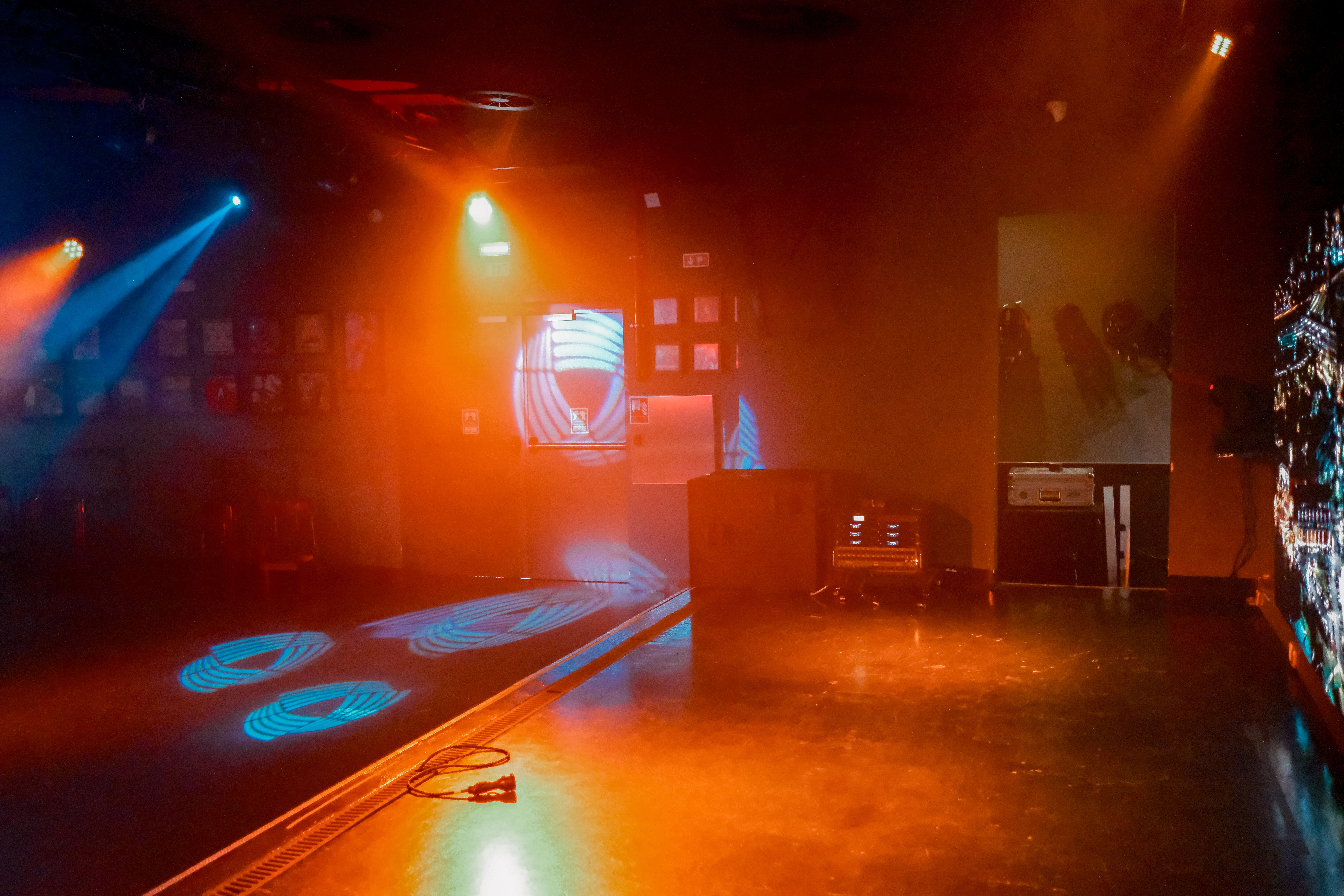

Lighting Equipment

Desk / Lightboard

• 1x Avolites Titan Mobile T2

Stage Front Light

• 4x PC Varytec LED Studio

Stage Backlighting

• 3x Led Bar Stairville xBrick
• 2x Moving Head Varytec Hero Spot 90 elevated 1 meter
• 2x Moving Head Varytech Hero Wash 340FX

Dance Floor / Stage Fill Lights

• 4x Moving Head Varytec Hero Spot 90 (only 3 available at the moment)
• 2x Varytec Typhoon PAR Led Zoom
• 2x Moving Head Varytech Hero Wash 340FX

Smoke / Hazer

• 1x Stairville HF-900 Haze Fogger

We don’t have dimmer channels for halogen lamps.

Video

Screen

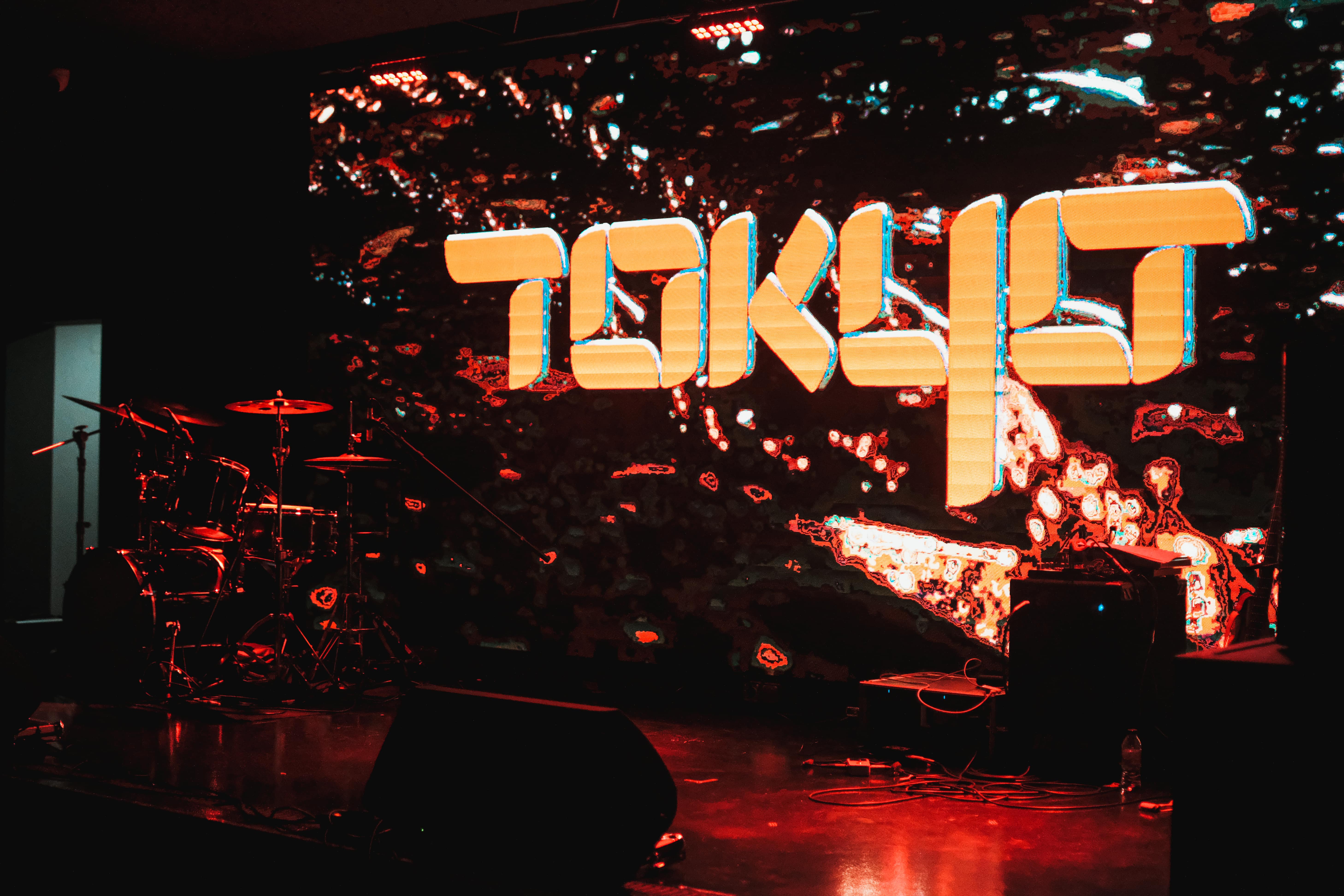

• LED panel as backdrop filling all back wall - 512m x 240m
• Real Pixels 1664x780
• Resolution: 1920x1080 – 60fps

Processor

• NOVASTAR

Control

• PC at booth with Arena 6 software. You can bring your own PC and use it on the stage or at the control booth.

Video Formats

• Supported file types: DXV, MOV, AVI, GIF, MP4, MPG, MPEG, JPG, PNG
• Resolution: 1920x1080

Connections

• HDMI connection at stage
• HDMI connection at booth

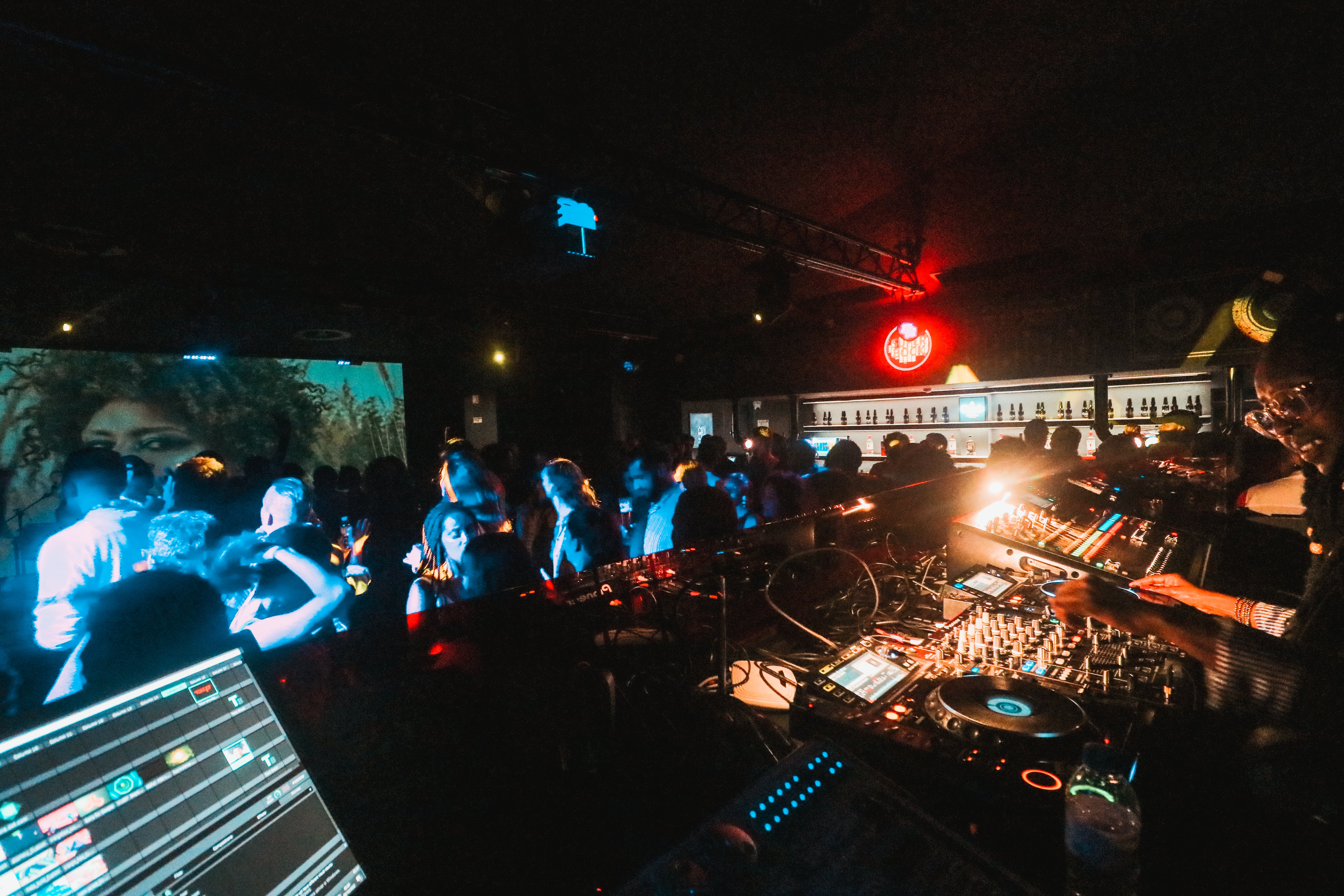

Sound Equipment

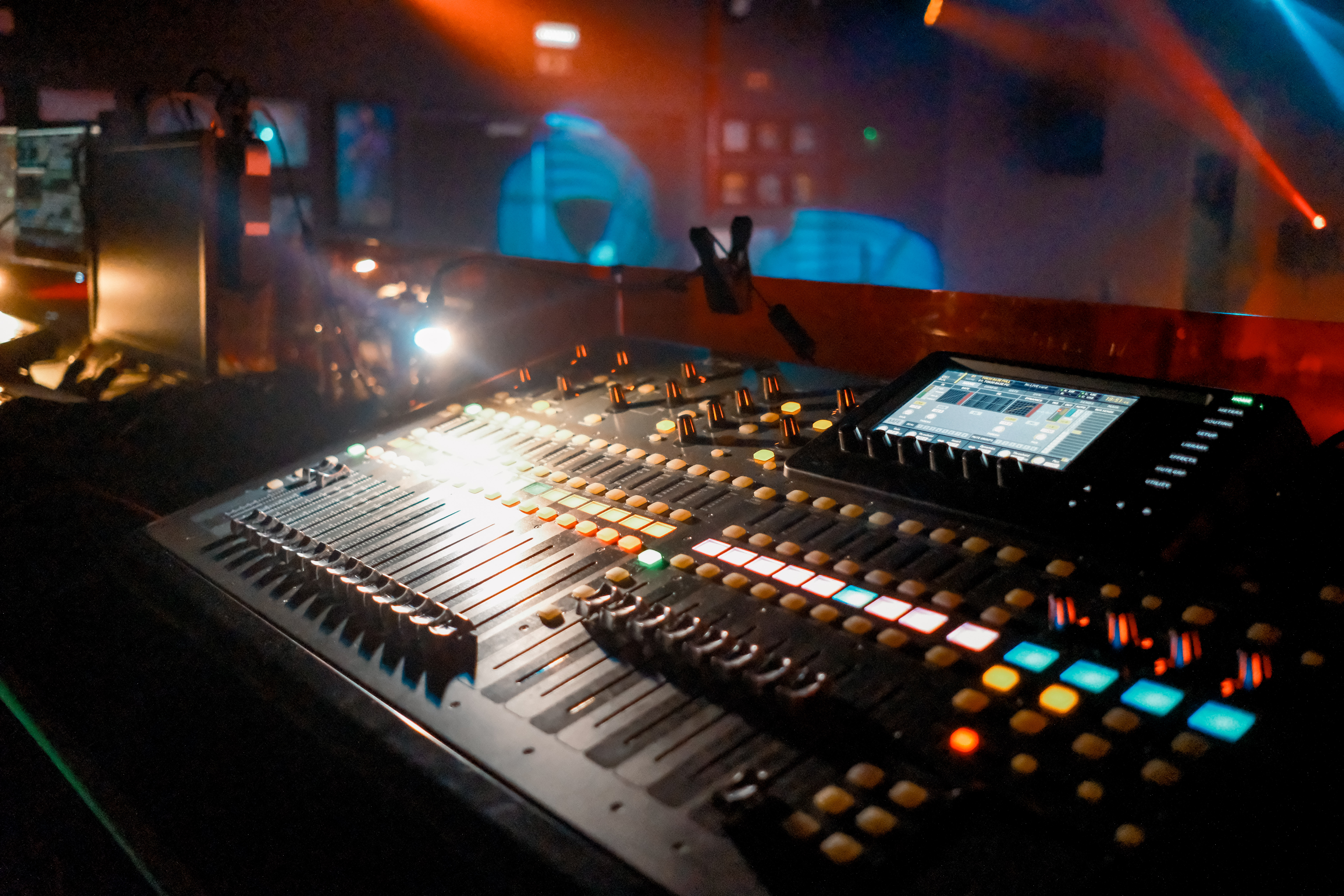

FOH Mixer

• BEHRINGER X32 32 XLR mic/line inputs, 8 stereo FX returns, 16 mix busses, 6 matrix busses with insert, 6 mute groups, 8 DCA groups, 16 XLR outputs, 6 AUX inputs: 6.3 mm jack, 6 AUX Out: 6.3 mm Jack (optional 2 via RCA), 32 inputs/32 outputs USB audio interface, 4-band fully-parametric EQ per channel, adjustable delays on all channels, virtual effects rack with 8 FX slots, built-in stereo USB recorder, remote control with USB or Ethernet. Show more

P.A.

• PA D&B
• Amp/Processor 40D d&b audiotechnik (4x2000W)
• 2x Tops 24S d&b audiotechnik (500/2000W)
• 2x Subs V-GSUB d&b audiotechnik (18”/12” 800/3200W cardioid)
• 2x Front Fills d&b

Stage Box

• Behringer S32 (at backstage)
• 1x subbox XLR 12 in 4 out (located on the upper right side)
• 2x Cordial Multicore CYB C 8/4 – 15m

Monitors

• 1x ANT ASM 12
• 4x db Technologies FM12 (only 3 available)

In-Ear System

• 4x Sennheiser IEM G4 (without phones)
• 3x Sennheiser XSW IEM Set (without phones)

Microphones

Dynamic Cardioid

• 3x SHURE SM58 LC
• 1x SHURE SM58 Wireless (BLX4R) (not avilable at the moment)
• 2x Audio-Technica MB 1k
• 4x SHURE SM57 LC (only 2 available)

Condenser Cardioid

• 2x AKG C519 Wireless

Drum Kit

• 1x SHURE BETA 52 (Hypercardioid dynamic)
• 3x SENNHEISER e604 (Cardioid dynamic)
• 2x RODE NT5 MP (Cardioid condenser) (not available at the moment)

DI Boxes

• 2x Behringer Ultra DI
• 2x Millenium DI-33
• 2x Palmer Audionomix Pan 01

Stands

• 5x Microphone stands
• 5x Small microphone stands
• 3x Clamps for drums
• 1x Kick microphone stand
• 2x Keyboard stands
• 1x Instrument stand
• 1x Orchestra stand

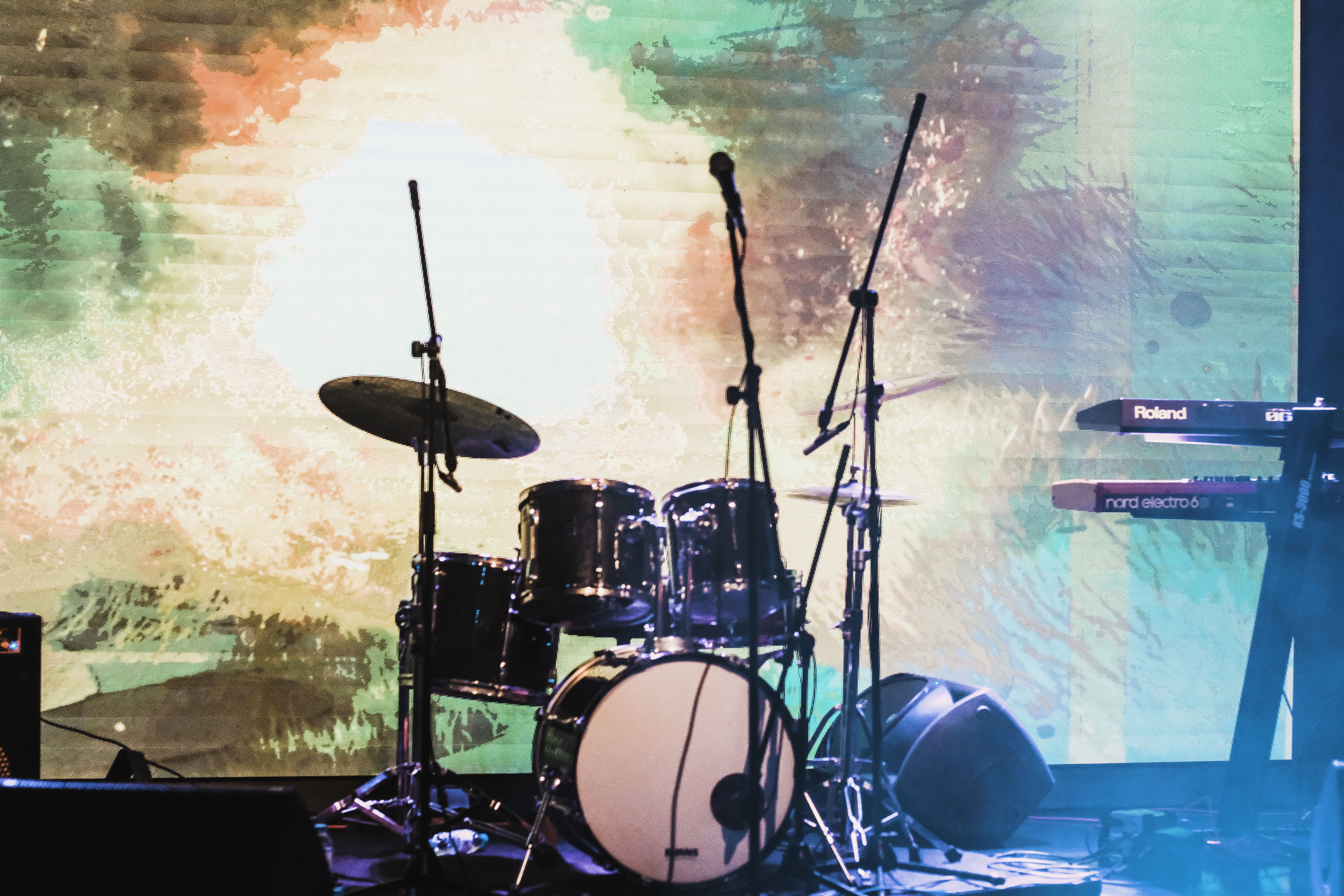

Backline & Instruments

Pearl Drum Kit

• 2x Tom Toms
• 1x Floor Tom
• 1x Kick 20”
• 1x Kick pedal
• 1x Snare stand
• 1x Crash-Cymbal stand
• 4x Cymbal stands

Snare and cymbals are not available.

Instrument Amplifiers

• 1x Bass Combo Markbass CMD121H (not available at the moment)
• 1x Guitar Amp Boss Katana 100/212

Digital Piano

• Yamaha Digital Piano P-45B

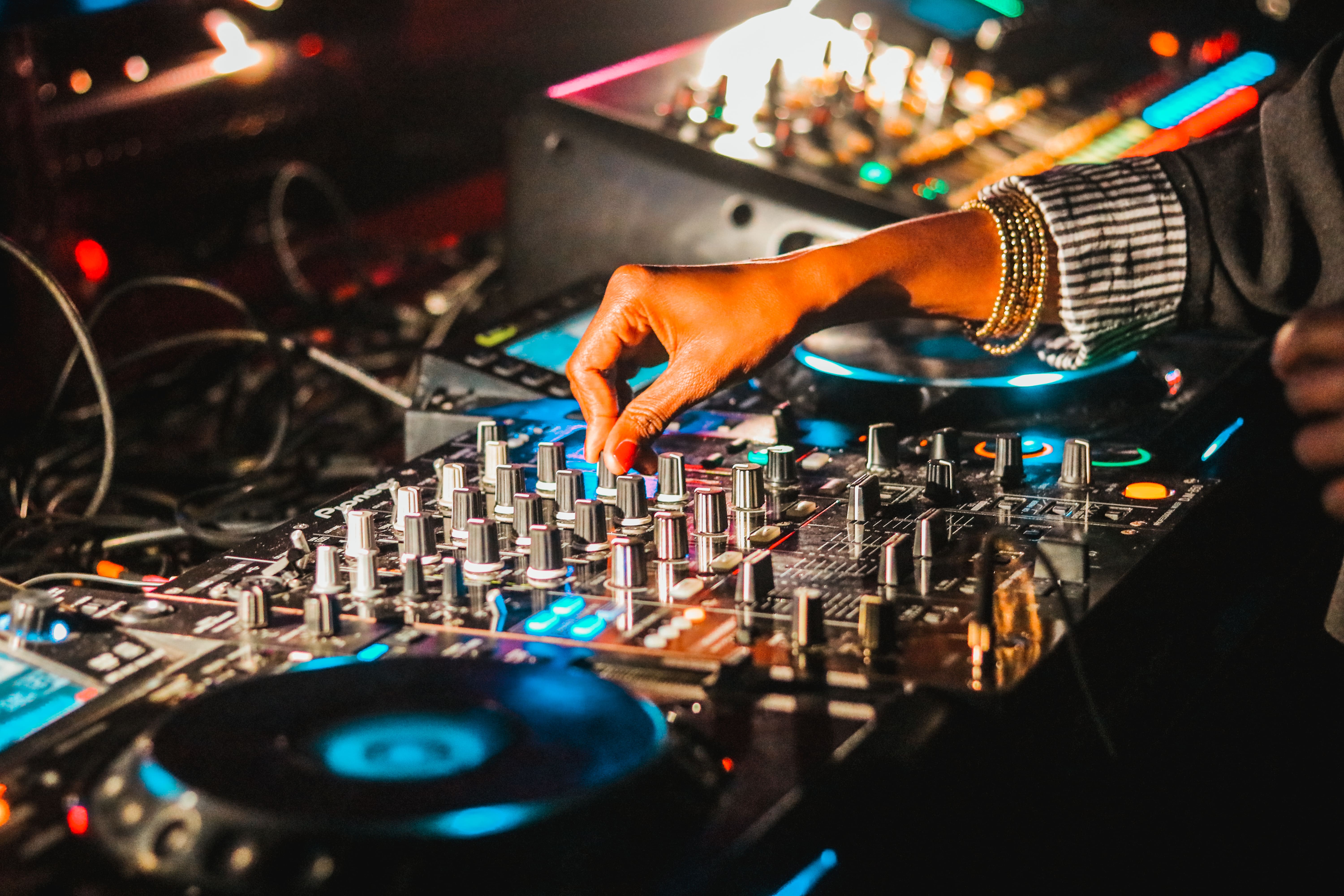

DJ Set

Turntables

• 2x Turntables Technics SL 1200 MK2 (white)
• 1x Turntable Technics SL 1210 MK2 (black)

Mixers and Mixing Stations

• 1x Mixer Pioneer DJM 750 MKII
• 1x Pioneer DJ XDJ-RR All-in-One DJ Controller with Screen (works with Rekordbox)

CDJ

• 2x Pioneer CDJ 850 (without Link)

Platforms and Tables

• 1x Platform 2m/1m (adjustable height)
• 1x Tokyo table for DJs

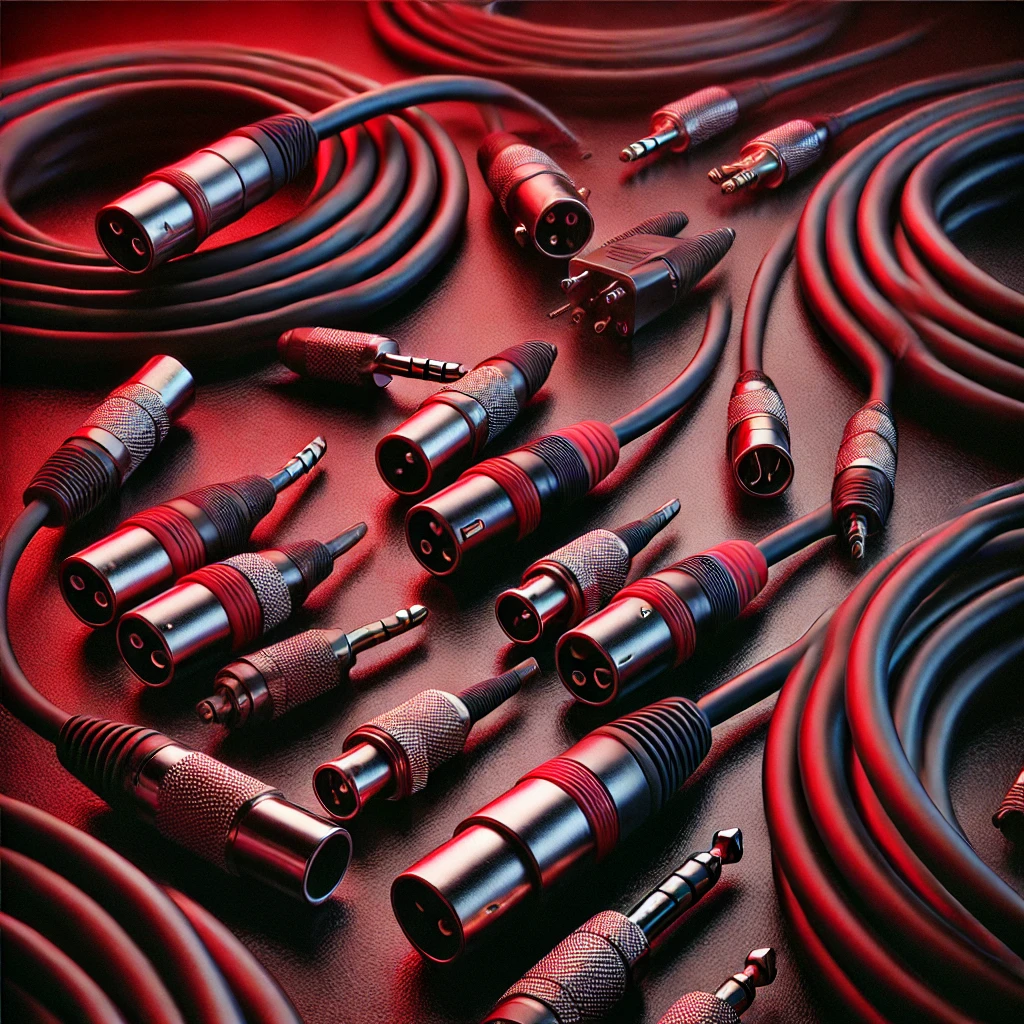

Cables

• 30x XLR M > XLR F
• 1x XLR Multicore 8
• 4x XLR M > Jack 6.5mm
• 1x XLR F > Jack 6.5mm
• 5x Jack > Jack
• 1x Jack stereo

Technical Direction / Contacts

For any technical questions or additional information, please contact:

Show Doutor – Serviços Técnicos para Espetáculos e Eventos

Email: [email protected]

Phone: +351 931 302 460
